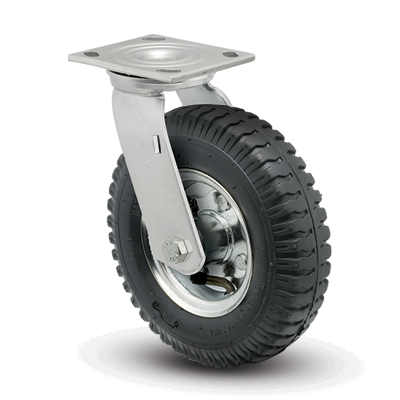

Pneumatic (Zinc)

RM1.00

Origin:

Brand:

Request Quotation
Download PDF

Description

Datasheet

Description Series Mounting Options Wheel Dia. Tread Type Finish Caster Brake Part Number Plate Size Bolt Hole Spacing Mounting Bolt Size Tread Width Wheel Bearing Capacity Load Height Swivel Rad. Approximate Weight
Value Pneumatic Top Plate Swivel, Top Plate Rigid 8 Inch Black Pneumatic Rubber, Grey Pneumatic Rubber Zinc Plated, Polished Brass Without VertiLoc 8-W81-940 4″ x 4 1/2″ 2 5/8″ x 3 5/8″ to 3″x 3″ 3/8 Inch 2.80/4 Inch Ball 310 Pounds 9 1/2 Inch 6 1/8 Inch 8 Pounds

Description

  • Wheel: Premium quality; designed to eliminate lope and wobble while rolling.
  • Finish: Bright zinc plating to resist rust and corrosion
  • Swivel Construction: Double Ball Bearing
  • Axle: 1/2″ diameter
  • King Pin: 5/8″ steel rivet, hydraulically upset
  • Fork Leg Spacing: 3″ spacing on 8″ wheels
  • Fork Leg Spacing: 4″ spacing on 10″ wheels

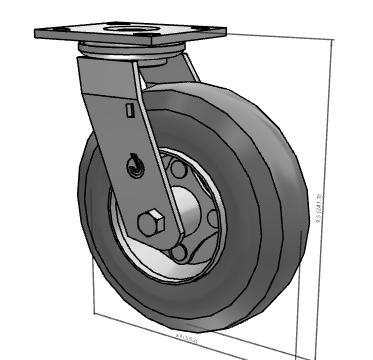

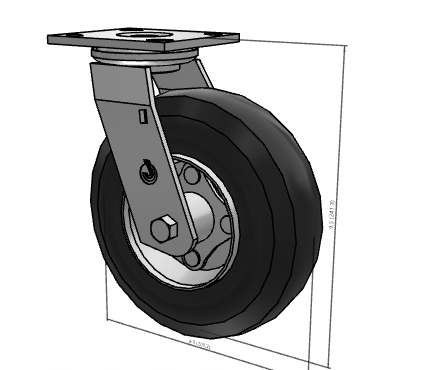

  • Mounting: Pneumatic casters standard with Swivel Top Plate

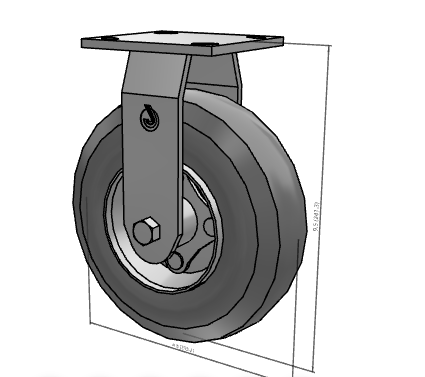

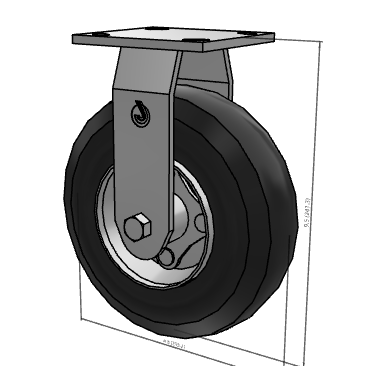

  • Mounting: Optional Rigid Top Plate available

Tread Types

Full-Pneumatic Wheels

Pneumatic wheels are similar to automotive tires and provide the ultimate in cushion ride and shock absorption. They are well-suited for moving fragile loads quietly over a variety of floor surfaces, both inside and out. Pneumatic tires have inner tubes and require air inflation.

Jarvis pneumatic wheels are premium quality and are designed to eliminate lope and wobble while rolling.

Options

Caster Options

VertiLoc Brake
VertiLoc® Brake available. VertiLoc is a popular side-operated brake that employs cam action to lock the brake pad across the entire wheel tread surface. This brake locks wheel only, and does not affect the swivel radius of the caster. VertiLoc features an all-steel construction, which provides positive, reliable braking under a variety of operation conditions and wheel tread types.

Optional Finishes
Pneumatic casters are available in Zinc Plated, Polished Brass, and Polished Chrome finish options. 10″ diameter options in Zinc Plated finish only.
